MUTCD Sign Code Index

An unofficial index, made by Roundabout

This Sign Code Index is not an official section of the MUTCD 11th Edition. We (Roundabout) built it as a convenience by harvesting every sign code from the manual and linking each to the section that defines it. A few rows don't have a picture yet.

Every sign and plaque code (R1-1, W11-2, …) is mapped to a picture of the sign, its name, and the section that defines it. Hover a thumbnail to enlarge it, or use your browser's find (Ctrl/Cmd-F) for a code.

Emergency Management (EM)

Sign Code Sign / plaque Defined in
EM2-1 EM2-1 AREA CLOSED Sign Part 2h 2n signs misc
EM2-2 EM2-2 TRAFFIC CONTROL POINT Sign Part 2h 2n signs misc
EM2-3 EM2-3 MAINTAIN TOP SAFE SPEED Sign Part 2h 2n signs misc
EM2-4 EM2-4 Permit Required Sign Part 2h 2n signs misc
EM3-1 EM3-1 MEDICAL CENTER Part 2h 2n signs misc
EM3-1a EM3-1a WELFARE CENTER Part 2h 2n signs misc
EM3-1b EM3-1b REGISTRATION CENTER Part 2h 2n signs misc
EM3-1c EM3-1c DECONTAMINATION CENTER Part 2h 2n signs misc
EM4-1 EM4-1 EMERGENCY Part 2h 2n signs misc
EM4-1a EM4-1a HURRICANE Part 2h 2n signs misc
EM4-1b EM4-1b FALLOUT Part 2h 2n signs misc
EM4-1c EM4-1c CHEMICAL Part 2h 2n signs misc

Emergency/Other (E)

Sign Code Sign / plaque Defined in
E1-5mP E1-5mP LEFT Part 2e guide signs freeways
E5-1 E5-1 EXIT Part 2e guide signs freeways
E5-1bP E5-1bP Exit Gore Number Part 2e guide signs freeways
E5-1c E5-1c Narrow Exit Gore Part 2e guide signs freeways
E5-1a E5-1a Exit Gore Part 2e guide signs freeways

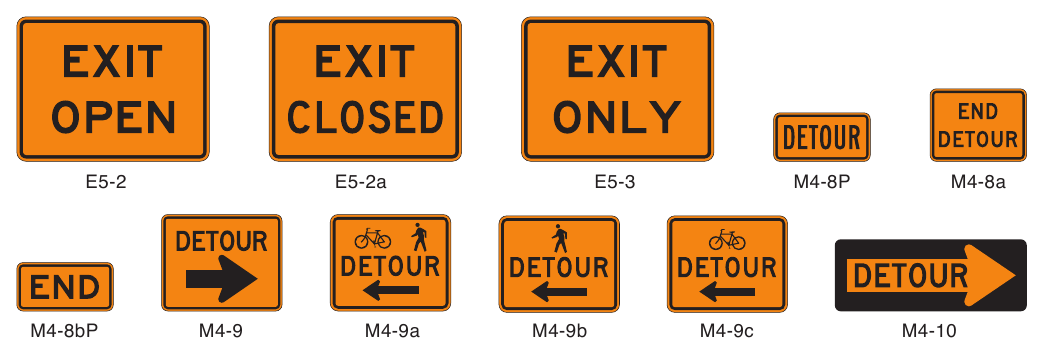

E5-2 E5-2 EXIT OPEN Part 6h ttc zone warning signs
E5-2a E5-2a EXIT CLOSED Part 6h ttc zone warning signs
E5-3 E5-3 EXIT ONLY Sign Part 6h ttc zone warning signs
E7-4 E7-4 Post-Interchange Travel Time Sign Part 2e guide signs freeways

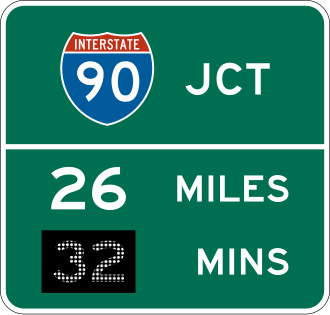

E7-5 E7-5 Distance and Travel Time Sign Part 2e guide signs freeways
E7-6 E7-6 Comparative Travel Time Sign Part 2e guide signs freeways
E8-3 E8-3 Advance Guide Part 2g preferential managed lane signs
E8-4 E8-4 Exit Gore Part 2g preferential managed lane signs
E8-5 E8-5 Intermediate Egress Direction Part 2g preferential managed lane signs
E8-6 E8-6 Advance Guide Part 2g preferential managed lane signs

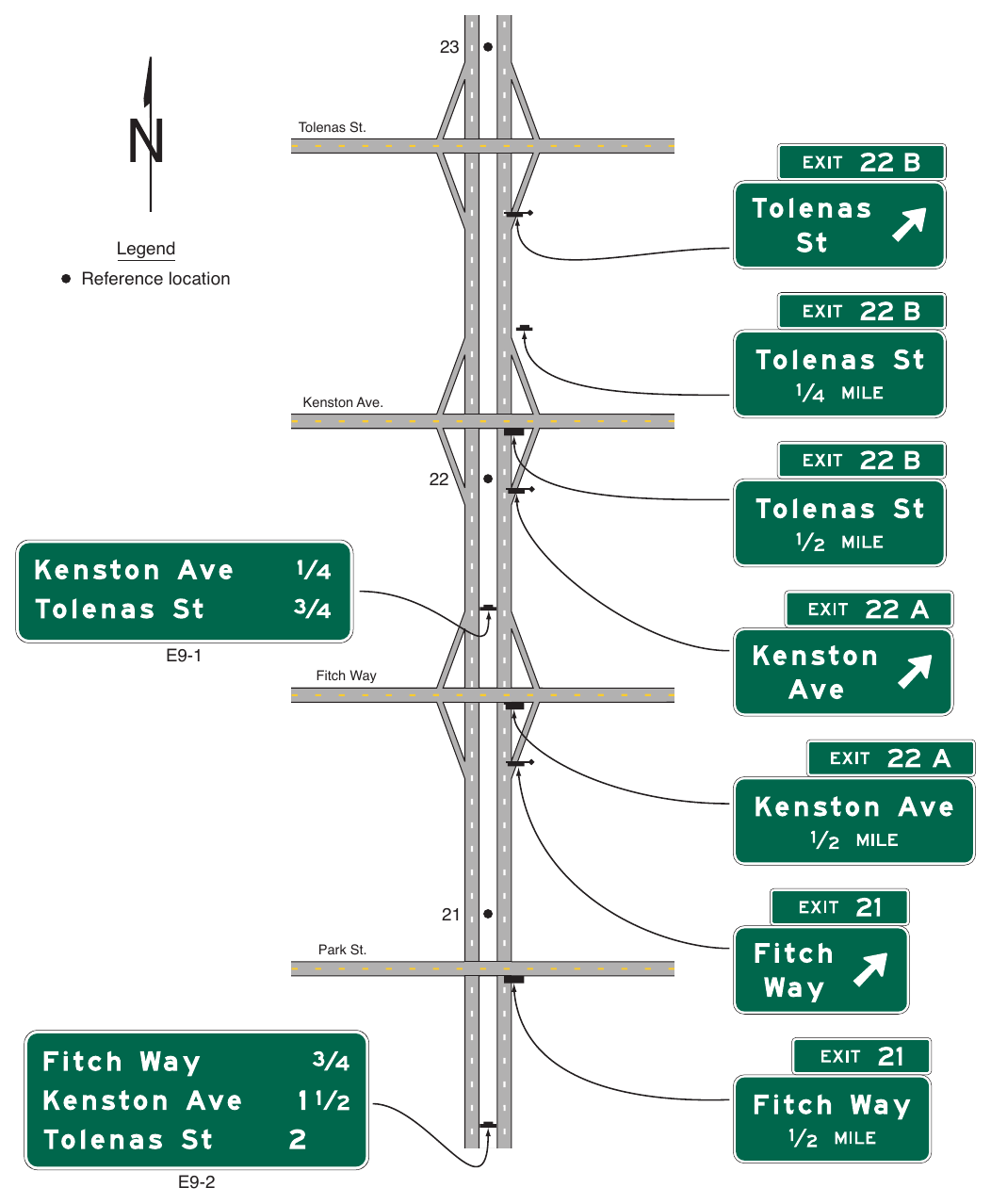

E9-1 E9-1 Interchange Sequence Sign Part 2e guide signs freeways
E11-1b E11-1b ONLY Part 2d guide signs conventional
E11-1a E11-1a EXIT Part 2e guide signs freeways
E11-1e E11-1e EXIT ONLY Part 2e guide signs freeways
E11-2 E11-2 LEFT Part 2e guide signs freeways

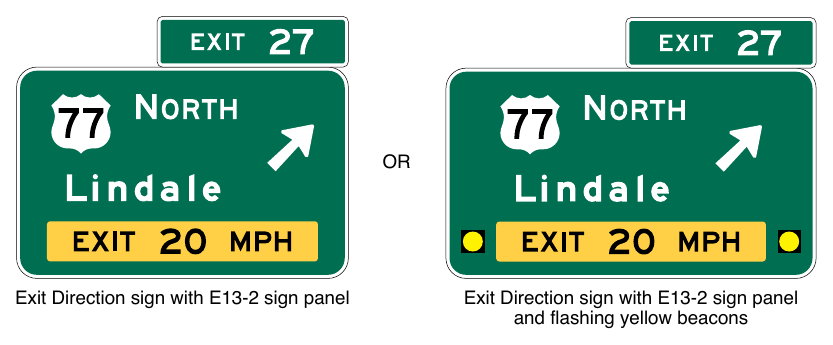

E13-2 E13-2 Exit Direction Advisory Speed Part 2e guide signs freeways

General Service (I)

Sign Code Sign / plaque Defined in
I1-1 I1-1 Traffic Signal Speed Sign Part 2h 2n signs misc
I2-1 I2-1 Jurisdictional Boundary Signs Part 2h 2n signs misc

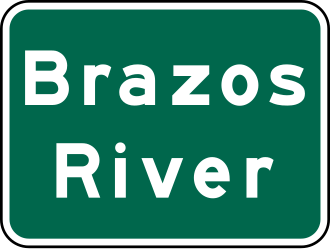

I2-2 I2-2 Geographical Feature Signs Part 2h 2n signs misc
I2-5 I2-5 Project Information Sign Part 2h 2n signs misc
I3-5 I3-5 Airport Part 2h 2n signs misc
I3-8 I3-8 Light Rail Transit Station Sign Part 8b signs
I3-10 I3-10 Passengers Only Ferry Terminal Part 2h 2n signs misc
I3-10P I3-10P FERRY Part 2h 2n signs misc
I4-2 I4-2 Recycling Center Part 2h 2n signs misc
I13-1 I13-1 Emergency Notification System Sign Part 8b signs
I13-2 I13-2 PUSH TO EXIT Part 8e pathway and sidewalk grade crossings

Guide & Destination (D)

Sign Code Sign / plaque Defined in
D3-1 D3-1 Street Name Part 2c warning signs
D3-2 D3-2 Advance Street Name Part 2d guide signs conventional
D4-1 D4-1 Parking Area Guide Sign Part 2d guide signs conventional
D4-2 D4-2 PARK - RIDE Sign Part 2d guide signs conventional
D4-3 D4-3 Bicycle Parking Area Part 9d guide and service signs
D4-4 D4-4 Bicycle-Sharing Station Part 9d guide and service signs
D4-4a D4-4a Bicycle Lockers Part 9d guide and service signs
D5-6 D5-6 Next Rest Area Part 2h 2n signs misc

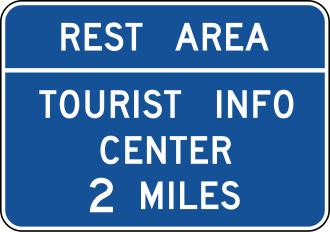

D5-7 D5-7 Rest Area Tourist Info Center Advance Part 2h 2n signs misc
D5-8 D5-8 Rest Area Tourist Info Center Entrance Direction Part 2h 2n signs misc

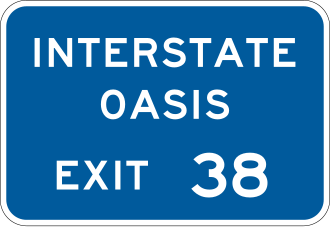

D5-12 D5-12 Interstate Oasis Part 2h 2n signs misc
D5-12aP D5-12aP INTERSTATE OASIS Part 2h 2n signs misc
D5-12b D5-12b Interstate Oasis Directional Part 2h 2n signs misc
D5-13 D5-13 Brake Check Area Advance Part 2h 2n signs misc
D5-15 D5-15 Chain-Up Area Advance Part 2h 2n signs misc
D8-1a D8-1a Weigh Station Ahead Part 2d guide signs conventional
D8-1 D8-1 Advance Weigh Station Distance Part 2d guide signs conventional
D8-2 D8-2 Weigh Station Advance Direction Part 2d guide signs conventional
D8-3 D8-3 Weigh Station Entrance Direction Part 2d guide signs conventional
D9-1 D9-1 Telephone Part 2h 2n signs misc
D9-2 D9-2 Hospital Part 2h 2n signs misc
D9-4 D9-4 Litter Container Part 2h 2n signs misc
D9-6 D9-6 International Symbol of Accessibility Part 2h 2n signs misc
D9-6P D9-6P VAN ACCESSIBLE Part 2h 2n signs misc
D9-10 D9-10 Tourist Information Part 2h 2n signs misc
D9-11 D9-11 Diesel Fuel Part 2h 2n signs misc
D9-11e D9-11e LP-GAS Part 2h 2n signs misc
D9-12 D9-12 Recreational Vehicle Sanitary Station Part 2h 2n signs misc
D9-13aP D9-13aP HOSPITAL Part 2h 2n signs misc
D9-13 D9-13 Emergency Medical Services Part 2h 2n signs misc
D9-13bP D9-13bP AMBULANCE STATION Part 2h 2n signs misc
D9-13cP D9-13cP EMERGENCY MEDICAL CARE Part 2h 2n signs misc
D9-13dP D9-13dP TRAUMA CENTER Part 2h 2n signs misc
D9-14 D9-14 POLICE Part 2h 2n signs misc
D9-16 D9-16 Truck Parking Part 2h 2n signs misc
D9-16aP D9-16aP TRUCK EXTERNAL POWER Part 2h 2n signs misc
D9-17a D9-17a Next EV Charging Part 2h 2n signs misc
D9-17P D9-17P Next Services Advance Part 2h 2n signs misc
D9-19 D9-19 Alternative Fuels Corridor Sign Part 2h 2n signs misc
D9-20 D9-20 Pharmacy Part 2h 2n signs misc
D9-20aP D9-20aP 24 HR Part 2h 2n signs misc
D9-21 D9-21 TDD Part 2h 2n signs misc
D9-22 D9-22 Wireless Internet Part 2h 2n signs misc
D10-4 D10-4 Enhanced Reference Location Signs Part 2h 2n signs misc
D10-5 D10-5 Enhanced Reference Location Signs Part 2h 2n signs misc
D11-1c D11-1c Alternative Bike Route Guide Part 9d guide and service signs
D11-1bP D11-1bP BIKE ROUTE Plaque Part 9d guide and service signs

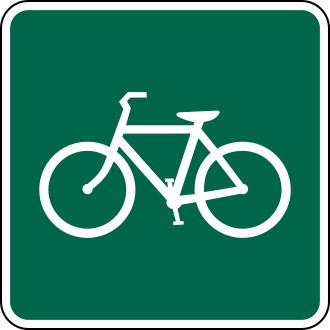

D11-11 D11-11 Bicycle Directional Part 9d guide and service signs
D11-20 D11-20 Two-Stage Bicycle Turn Box Advance Part 9d guide and service signs
D11-20a D11-20a Two-Stage Bicycle Turn Box Part 9d guide and service signs
D12-1 D12-1 Radio-Weather Information Part 2h 2n signs misc
D12-1a D12-1a Radio-Traffic Information Part 2h 2n signs misc
D12-1bP D12-1bP URGENT MESSAGE WHEN FLASHING Part 2h 2n signs misc
D12-2 D12-2 Carpool and Ridesharing Signing Part 2h 2n signs misc
D12-3 D12-3 Channel 9 Monitored Sign Part 2h 2n signs misc
D12-4 D12-4 EMERGENCY CALL 911 Sign Part 2h 2n signs misc
D12-6 D12-6 Roadside Assistance Sign Part 2h 2n signs misc
D13-1 D13-1 Crossover Part 2d guide signs conventional
D13-2 D13-2 Advance Crossover Part 2d guide signs conventional
D13-3 D13-3 FREEWAY ENTRANCE Part 2d guide signs conventional
D13-3a D13-3a FREEWAY ENTRANCE Part 2d guide signs conventional

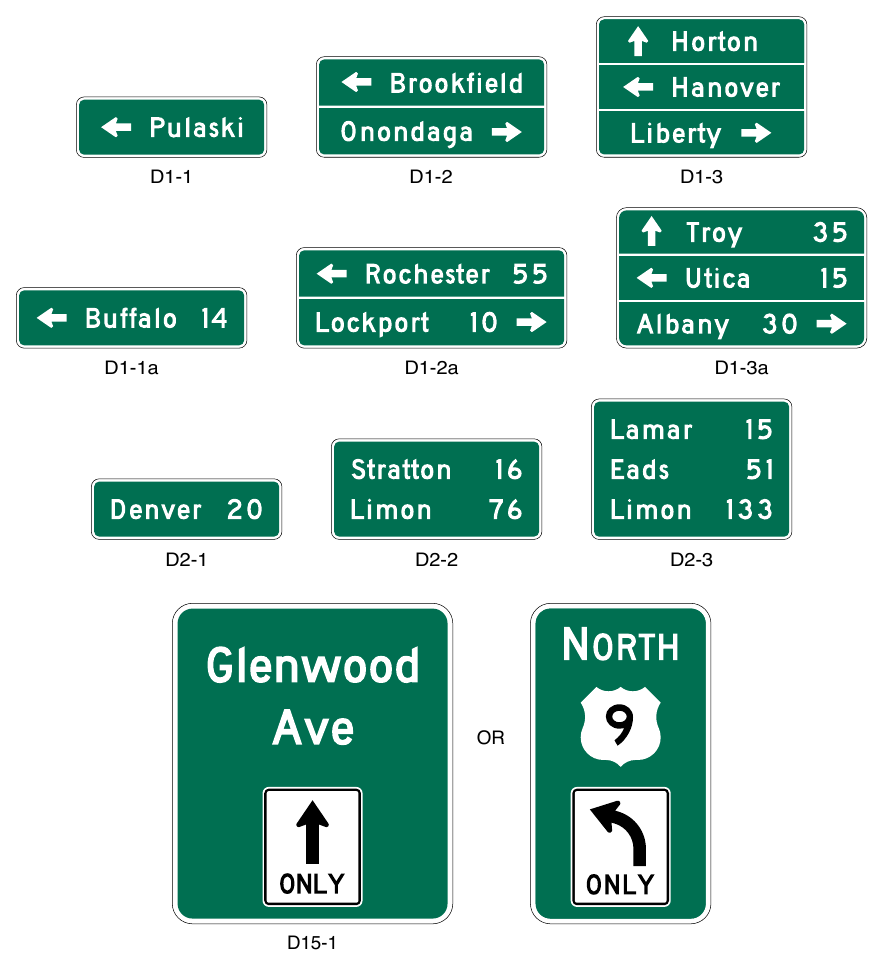

D15-1 D15-1 Lane-Use/Destination Overhead Guide Sign Part 2d guide signs conventional
D17-1 D17-1 Next Truck Lane Part 2d guide signs conventional
D17-2 D17-2 Advance Truck Lane Part 2d guide signs conventional
D17-3 D17-3 Next Passing Lane Part 2d guide signs conventional

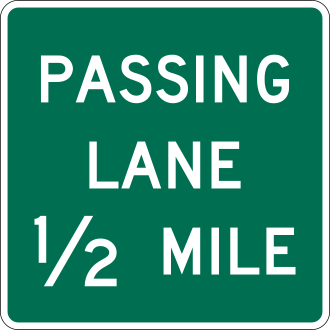

D17-4 D17-4 Advance Passing Lane Part 2d guide signs conventional
D17-5 D17-5 Advance Emergency Turn-Out Part 2d guide signs conventional
D17-6 D17-6 Emergency Turn-Out Directional Part 2d guide signs conventional
D17-7 D17-7 Advance Slow Vehicle Turn-Out Part 2d guide signs conventional

Guide (G)

Sign Code Sign / plaque Defined in
G20-1 G20-1 ROAD WORK NEXT XX MILES Sign Part 6h ttc zone warning signs
G20-2 G20-2 END ROAD WORK Sign Part 6h ttc zone warning signs
G20-4 G20-4 PILOT CAR FOLLOW ME Sign Part 6h ttc zone warning signs
G20-5aP G20-5aP WORK ZONE Part 2b regulatory signs

Guide/Recreational (M)

Sign Code Sign / plaque Defined in
M1-1 M1-1 National Forest Route Sign Part 2a signs general
M1-5 M1-5 State Route Part 2f toll road signs
M1-6 M1-6 County Route Part 2a signs general
M1-7 M1-7 National Forest Route Marker Part 2d guide signs conventional
M1-8 M1-8 Numbered Bicycle Route Part 9d guide and service signs
M1-8a M1-8a Numbered Bicycle Route Part 9d guide and service signs
M1-9 M1-9 U.S. Bicycle Route Sign Part 9d guide and service signs
M2-1P M2-1P Junction Auxiliary Plaque Part 2d guide signs conventional
M2-2 M2-2 Combination Junction Sign Part 2d guide signs conventional
M4-1P M4-1P ALTERNATE Part 2d guide signs conventional
M4-1aP M4-1aP ALT Part 2d guide signs conventional
M4-2P M4-2P BY-PASS Auxiliary Plaque Part 2d guide signs conventional
M4-3P M4-3P BUSINESS Auxiliary Plaque Part 2d guide signs conventional
M4-4P M4-4P TRUCK Auxiliary Plaque Part 2d guide signs conventional
M4-5P M4-5P TO Auxiliary Plaque Part 2d guide signs conventional
M4-6P M4-6P END Auxiliary Plaque Part 2d guide signs conventional
M4-7P M4-7P TEMPORARY Part 2d guide signs conventional
M4-7aP M4-7aP TEMP Part 2d guide signs conventional
M4-8P M4-8P DETOUR Part 6i ttc zone guide signs
M4-8a M4-8a END DETOUR Part 6i ttc zone guide signs
M4-8bP M4-8bP END Part 6i ttc zone guide signs
M4-9a M4-9a Bicyclist/ Pedestrian Detour Part 6g ttc zone regulatory signs
M4-9b M4-9b Pedestrian Detour Part 6g ttc zone regulatory signs
M4-9 M4-9 DETOUR Part 6i ttc zone guide signs
M4-9c M4-9c Bicyclist Detour Part 6i ttc zone guide signs
M4-10 M4-10 Detour Arrow Part 6i ttc zone guide signs
M4-12 M4-12 End Emergency Route Part 2d guide signs conventional
M4-14P M4-14P BEGIN Auxiliary Plaque Part 2d guide signs conventional
M4-17 M4-17 Toll Collector Part 2f toll road signs
M4-18 M4-18 Exact Change Part 2f toll road signs
M5-3P M5-3P Circular Intersection Advance Turn Arrow Part 2d guide signs conventional
M10-1 M10-1 National Scenic Byways Part 2d guide signs conventional
M10-1aP M10-1aP National Scenic Byways Part 2d guide signs conventional
M10-2aP M10-2aP Byway Identification Part 2d guide signs conventional
M10-2 M10-2 Byway Identification Part 2d guide signs conventional
M10-3bP M10-3bP SCENIC BYWAY Part 2d guide signs conventional
M10-3 M10-3 State Scenic Byway System Part 2d guide signs conventional

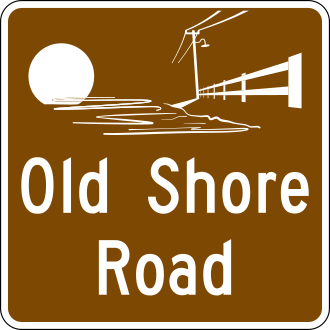

M10-3a M10-3a State Scenic Byway Part 2d guide signs conventional
M11-1 M11-1 National Historic Trail Identification Part 2d guide signs conventional
M11-1aP M11-1aP HISTORIC ROUTE Part 2d guide signs conventional
M11-1bP M11-1bP CROSSING Part 2d guide signs conventional
M11-1cP M11-1cP AUTO TOUR ROUTE Part 2d guide signs conventional
M11-1dP M11-1dP NEXT XX MILES Part 2d guide signs conventional

Regulatory (R)

Sign Code Sign / plaque Defined in
R1-1 R1-1 STOP Sign Part 2b regulatory signs
R1-2 R1-2 YIELD Sign Part 2b regulatory signs
R1-2aP R1-2aP TO ONCOMING TRAFFIC Part 2b regulatory signs
R1-2bP R1-2bP TO TRAFFIC IN CIRCLE Part 2b regulatory signs
R1-2cP R1-2cP TO ALL LANES Part 2b regulatory signs
R1-3P R1-3P ALL-WAY Plaque Part 2b regulatory signs
R1-5b R1-5b Stop Here for Pedestrians Part 3b pavement and curb markings
R1-5c R1-5c Stop Here for School Crossing Part 3b pavement and curb markings
R1-5 R1-5 Yield Here to Pedestrians Part 3b pavement and curb markings
R1-5a R1-5a Yield Here to School Crossings Part 3b pavement and curb markings
R1-5d R1-5d Yield Here to Trail Crossings Part 3b pavement and curb markings
R1-5e R1-5e Stop Here for Trail Crossing Part 3b pavement and curb markings
R1-7 R1-7 WAIT ON STOP Part 6l other ttc zone traffic control devices
R1-7a R1-7a WAIT ON STOP/ GO ON SLOW Part 6l other ttc zone traffic control devices
R1-8 R1-8 GO ON SLOW Part 6l other ttc zone traffic control devices
R1-10P R1-10P EXCEPT RIGHT TURN Part 2b regulatory signs
R2-1 R2-1 Speed Limit Sign Part 2b regulatory signs
R2-2P R2-2P Truck Speed Limit Part 2b regulatory signs
R2-2aP R2-2aP Bus Speed Limit Part 2b regulatory signs
R2-2bP R2-2bP Truck-Bus Speed Limit Part 2b regulatory signs
R2-2cP R2-2cP Vehicles over X Tons Speed Limit Part 2b regulatory signs
R2-3P R2-3P Night Speed Limit Plaque Part 2b regulatory signs
R2-4a R2-4a Maximum and Minimum Speed Limits Sign Part 2b regulatory signs
R2-4P R2-4P Minimum Speed Limit Plaque Part 2b regulatory signs
R2-5aP R2-5aP CITYWIDE Part 2b regulatory signs
R2-5bP R2-5bP NEIGHBORHOOD Part 2b regulatory signs
R2-5cP R2-5cP RESIDENTIAL Part 2b regulatory signs
R2-5P R2-5P UNLESS OTHERWISE POSTED Part 2b regulatory signs
R2-6P R2-6P FINES HIGHER Part 2b regulatory signs
R2-6aP R2-6aP FINES DOUBLE Part 2b regulatory signs
R2-6bP R2-6bP $XX FINE Part 2b regulatory signs
R2-10 R2-10 BEGIN HIGHER FINES ZONE Part 2b regulatory signs
R2-11 R2-11 END HIGHER FINES ZONE Part 2b regulatory signs
R2-12 R2-12 END WORK ZONE SPEED LIMIT Part 6g ttc zone regulatory signs
R2-13 R2-13 END VARIABLE SPEED LIMIT Part 2b regulatory signs
R2-14 R2-14 END TRUCK SPEED LIMIT Part 2b regulatory signs
R3-1 R3-1 No Right Turn Part 2b regulatory signs
R3-2 R3-2 No Left Turn Part 2b regulatory signs
R3-3 R3-3 NO TURNS Part 2b regulatory signs
R3-4 R3-4 No U-Turn Part 2b regulatory signs
R3-5dP R3-5dP TAXI LANE Part 2b regulatory signs
R3-5gP R3-5gP BUS LANE Part 2b regulatory signs
R3-5a R3-5a Through Only Part 2b regulatory signs
R3-5 R3-5 Mandatory Movement Lane Control Part 9b regulatory signs
R3-5hP R3-5hP BIKE LANE Part 9b regulatory signs
R3-7 R3-7 LEFT LANE MUST TURN LEFT Part 2a signs general
R3-7aP R3-7aP EXCEPT BUSES Part 2b regulatory signs
R3-7bP R3-7bP EXCEPT BICYCLES Regulatory Plaque Part 9b regulatory signs
R3-9cP R3-9cP BEGIN Part 2b regulatory signs
R3-9dP R3-9dP END Part 2b regulatory signs
R3-9f R3-9f CENTER LANE Part 2b regulatory signs
R3-9i R3-9i More than one End Reverse Lane Part 2b regulatory signs
R3-10 R3-10 Vehicle Occupancy Definition Part 2g preferential managed lane signs
R3-10a R3-10a ILEV Part 2g preferential managed lane signs
R3-11a R3-11a Preferential Lane Operation Part 2g preferential managed lane signs
R3-11hP R3-11hP MOTORCYCLES ALLOWED Part 2g preferential managed lane signs
R3-12d R3-12d Preferential Lane Ends Part 2g preferential managed lane signs
R3-12c R3-12c Preferential Lane Ends Part 2g preferential managed lane signs
R3-15a R3-15a Preferential Lane Advance Part 2g preferential managed lane signs
R3-15c R3-15c Preferential Lane Ends Part 2g preferential managed lane signs
R3-17 R3-17 BIKE LANE Part 9b regulatory signs
R3-17aP R3-17aP AHEAD Part 9b regulatory signs
R3-17bP R3-17bP ENDS Part 9b regulatory signs
R3-18 R3-18 No U or Left Turn Part 2b regulatory signs
R3-19 R3-19 LANE FOR LEFT TURN ONLY Part 2b regulatory signs
R3-19a R3-19a LANE FOR U TURN ONLY Part 2b regulatory signs
R3-19b R3-19b LANE FOR U AND LEFT TURNS ONLY Part 2b regulatory signs
R3-20R R3-20R BEGIN RIGHT TURN LANE Part 2g preferential managed lane signs
R3-20L R3-20L BEGIN LEFT TURN LANE Part 2g preferential managed lane signs
R3-23 R3-23 ALL TURNS FROM RIGHT LANE Part 2b regulatory signs
R3-23a R3-23a U TURN FROM RIGHT LANE Part 2b regulatory signs
R3-27 R3-27 No Straight Through Part 2b regulatory signs
R3-28 R3-28 Toll Rate Part 2f toll road signs
R3-29P R3-29P PAY TOLL Part 2f toll road signs
R3-30P R3-30P TAKE TICKET Part 2f toll road signs
R3-31 R3-31 ETC Account-Only Part 2f toll road signs
R3-32P R3-32P NO CASH Part 2f toll road signs
R3-33 R3-33 LANE MUST EXIT Part 2b regulatory signs
R3-51 R3-51 Part-Time Travel on Shoulder Operation Part 2g preferential managed lane signs
R3-51d R3-51d Time Travel on Shoulder Variable Operation Part 2g preferential managed lane signs
R3-51cP R3-51cP EMERGENCY STOPPING ONLY OTHER TIMES Part 2g preferential managed lane signs
R3-51e R3-51e Part-Time Travel on Shoulder on Green Arrow Part 2g preferential managed lane signs
R3-52c R3-52c Part-Time Travel on Shoulder Begins Advance Part 2g preferential managed lane signs
R3-52a R3-52a Part-Time Travel on Shoulder Ends Advance Part 2g preferential managed lane signs
R3-52 R3-52 Part-Time Travel on Shoulder Ends Part 2g preferential managed lane signs
R3-56 R3-56 BEGIN EXIT LANE Part 2g preferential managed lane signs
R3-57P R3-57P TO TRAFFIC ON SHOULDER Part 2g preferential managed lane signs
R4-1 R4-1 DO NOT PASS Sign Part 2b regulatory signs
R4-2 R4-2 PASS WITH CARE Sign Part 2b regulatory signs
R4-3 R4-3 SLOWER TRAFFIC KEEP RIGHT Part 2b regulatory signs
R4-4 R4-4 BEGIN RIGHT TURN LANE YIELD TO BIKES Sign Part 9b regulatory signs
R4-5 R4-5 TRUCKS USE RIGHT LANE Sign Part 2b regulatory signs
R4-7 R4-7 Keep Right Part 2b regulatory signs
R4-7b R4-7b Keep Right with diagonal arrow Part 2b regulatory signs
R4-7c R4-7c Keep Right Part 2b regulatory signs
R4-8 R4-8 Keep Left Part 2b regulatory signs
R4-9 R4-9 STAY IN LANE Sign Part 2b regulatory signs
R4-9a R4-9a STAY IN LANE TO MERGE POINT Part 6g ttc zone regulatory signs
R4-10 R4-10 RUNAWAY VEHICLES ONLY Sign Part 2b regulatory signs
R4-12 R4-12 Slow Vehicle Turn-Out Sign Part 2b regulatory signs
R4-13 R4-13 SLOW VEHICLES MUST USE TURNOUT AHEAD Part 2b regulatory signs
R4-16 R4-16 KEEP RIGHT EXCEPT TO PASS Sign Part 2b regulatory signs
R4-17 R4-17 DO NOT DRIVE ON SHOULDER Sign Part 2b regulatory signs
R4-18 R4-18 DO NOT PASS ON SHOULDER Sign Part 2b regulatory signs
R4-19 R4-19 Bicycle Passing Clearance Sign Part 9b regulatory signs
R4-20 R4-20 ALL TRAFFIC Sign Part 2b regulatory signs
R4-21 R4-21 TURN ONLY Sign Part 2b regulatory signs
R5-1 R5-1 DO NOT ENTER Sign Part 2b regulatory signs
R5-1a R5-1a WRONG WAY Sign Part 2b regulatory signs
R5-1b R5-1b Bicycle WRONG WAY Part 9b regulatory signs
R5-2 R5-2 No Trucks Part 2b regulatory signs
R5-2b R5-2b NO THRU TRUCKS Part 2b regulatory signs
R5-2aP R5-2aP EXCEPT LOCAL DELIVERY Part 2b regulatory signs
R5-3 R5-3 NO MOTOR VEHICLES Sign Part 9b regulatory signs
R5-4 R5-4 NO COMMERCIAL VEHICLES Part 2b regulatory signs
R5-5 R5-5 NO VEHICLES WITH LUGS Part 2b regulatory signs
R5-6 R5-6 No Bicycles Part 2b regulatory signs
R5-7 R5-7 NO NON-MOTORIZED TRAFFIC Part 2b regulatory signs
R5-10b R5-10b NO PEDESTRIANS OR BICYCLES Part 2b regulatory signs
R5-10c R5-10c NO PEDESTRIANS Part 2b regulatory signs
R5-10dP R5-10dP ON FREEWAY Part 9b regulatory signs
R5-11 R5-11 AUTHORIZED VEHICLES ONLY Part 2b regulatory signs
R5-12 R5-12 NO THRU TRAFFIC Part 2b regulatory signs
R6-5P R6-5P Roundabout Circulation Plaque Part 2b regulatory signs
R6-6 R6-6 BEGIN ONE WAY Part 2b regulatory signs
R6-7 R6-7 END ONE WAY Part 2b regulatory signs
R7-1 R7-1 Parking Prohibition Part 2b regulatory signs
R7-8 R7-8 Accessible Parking Part 2b regulatory signs
R7-8aP R7-8aP VAN ACCESSIBLE Part 2b regulatory signs
R7-10 R7-10 Back-In Parking Sign Part 9b regulatory signs
R7-20 R7-20 Multi-Space Parking Meter Part 2b regulatory signs
R7-21aP R7-21aP Mobile Parking Payment Part 2b regulatory signs
R7-108 R7-108 Permissive Parking Part 2b regulatory signs
R7-202P R7-202P THIS SIDE OF SIGN Part 2b regulatory signs
R7-203 R7-203 Snow Emergency Route Part 2b regulatory signs
R8-1 R8-1 NO PARKING ON PAVEMENT Part 2b regulatory signs
R8-2 R8-2 NO PARKING EXCEPT ON SHOULDER Part 2b regulatory signs
R8-3c R8-3c ON PAVEMENT Part 2b regulatory signs
R8-3d R8-3d ON BRIDGE Part 2b regulatory signs
R8-3e R8-3e ON TRACKS Part 2b regulatory signs
R8-3f R8-3f EXCEPT ON SHOULDERS Part 2b regulatory signs
R8-3 R8-3 No Parking Part 2c warning signs
R8-4 R8-4 EMERGENCY PARKING ONLY Part 2b regulatory signs
R8-5 R8-5 NO STOPPING ON PAVEMENT Part 2b regulatory signs
R8-6 R8-6 NO STOPPING EXCEPT ON SHOULDER Part 2b regulatory signs
R8-7 R8-7 EMERGENCY STOPPING ONLY Part 2b regulatory signs
R8-8 R8-8 DO NOT STOP ON TRACKS Sign Part 8b signs
R8-9 R8-9 TRACKS OUT OF SERVICE Sign Part 8b signs
R9-1 R9-1 WALK ON LEFT FACING TRAFFIC Part 2b regulatory signs
R9-2 R9-2 CROSS ONLY AT CROSSWALKS Part 2b regulatory signs
R9-3 R9-3 No Pedestrian Crossing Part 2b regulatory signs
R9-3a R9-3a NO PEDESTRIAN CROSSING Part 2b regulatory signs
R9-3bP R9-3bP USE CROSSWALK Part 2b regulatory signs
R9-3cP R9-3cP RIDE WITH TRAFFIC Part 9b regulatory signs
R9-4 R9-4 No Hitchhiking Part 2b regulatory signs
R9-5 R9-5 Bicycles Use Ped Signal Sign Part 9b regulatory signs
R9-6 R9-6 Bicycles Yield to Peds Sign Part 9b regulatory signs
R9-7 R9-7 Shared-Use Path Restriction Sign Part 9b regulatory signs
R9-8 R9-8 PEDESTRIAN CROSSWALK Sign Part 6g ttc zone regulatory signs
R9-9 R9-9 SIDEWALK CLOSED Part 6g ttc zone regulatory signs
R9-10 R9-10 USE OTHER SIDE Part 6g ttc zone regulatory signs
R9-11 R9-11 CROSS HERE Part 6g ttc zone regulatory signs
R9-11a R9-11a CROSS HERE Part 6g ttc zone regulatory signs
R9-13 R9-13 No Skaters Part 2b regulatory signs
R9-14 R9-14 No Equestrians Part 2b regulatory signs
R9-15 R9-15 No Snowmobiles Part 2b regulatory signs
R9-16 R9-16 No All-Terrain Vehicles Part 2b regulatory signs
R9-19P R9-19P EXCEPT ON SHOULDER Part 2b regulatory signs
R9-20 R9-20 Bicycles Allowed Use of Full Lane Sign Part 9b regulatory signs
R9-21 R9-21 Bicycles Use Shoulder Only Sign Part 9b regulatory signs
R9-22 R9-22 Bicycles Must Exit Part 9b regulatory signs
R9-23 R9-23 Bicycles All Turns from Bike Lane Part 9b regulatory signs
R9-23a R9-23a Bicycle Left Turn from Bike Lane Part 9b regulatory signs
R9-23b R9-23b Bicycle Turn Must Use Turn Box Part 9b regulatory signs
R9-23c R9-23c Bicycle Turn Must Use Turn Box location Part 9b regulatory signs
R10-2 R10-2 SIGNAL Part 2b regulatory signs
R10-3a R10-3a Push Button to Cross Street Wait for Walk Signal Part 2b regulatory signs
R10-4a R10-4a Push Button to Cross Street Wait for Green Signal Part 2b regulatory signs
R10-5 R10-5 ON GREEN ARROW ONLY Part 2b regulatory signs
R10-6 R10-6 STOP HERE ON RED Part 4q traffic control for movable bridges
R10-7 R10-7 DO NOT BLOCK INTERSECTION Part 2b regulatory signs
R10-8 R10-8 WITH GREEN ARROW Part 2b regulatory signs
R10-10 R10-10 TURN SIGNAL Part 2b regulatory signs
R10-10a R10-10a U TURN SIGNAL Part 2b regulatory signs
R10-10R R10-10R RIGHT TURN SIGNAL Part 2b regulatory signs
R10-10b R10-10b LANE SIGNAL Part 8d flashing light signals automatic gates and traffic control signals
R10-10c R10-10c TURN LANE SIGNAL Part 8d flashing light signals automatic gates and traffic control signals
R10-11c R10-11c NO TURN ON RED EXCEPT FROM RIGHT LANE Part 2b regulatory signs
R10-12a R10-12a TURN YIELD ON FLASHING YELLOW ARROW Part 2b regulatory signs
R10-12b R10-12b Left Turn Yield to Bicycles Sign Part 9b regulatory signs
R10-13 R10-13 EMERGENCY SIGNAL Part 2b regulatory signs
R10-14b R10-14b STOP HERE ON FLASHING RED Part 2b regulatory signs
R10-15a R10-15a Turning Vehicles Stop for Pedestrians Part 2b regulatory signs
R10-15 R10-15 Turning Vehicles Yield to Pedestrians Part 9b regulatory signs
R10-16 R10-16 U TURN YIELD TO RIGHT TURN Part 2b regulatory signs
R10-17a R10-17a ON RED ARROW AFTER STOP Part 2b regulatory signs
R10-18 R10-18 Traffic Laws Photo Enforced Part 2b regulatory signs
R10-18a R10-18a Traffic Signal Photo Enforced Part 2b regulatory signs
R10-19P R10-19P Photo Enforced Part 2b regulatory signs
R10-19aP R10-19aP PHOTO ENFORCED Part 2b regulatory signs
R10-22 R10-22 Bicycle Detector Part 9b regulatory signs
R10-23a R10-23a YIELD ON FLASHING RED AFTER STOP Part 2b regulatory signs
R10-25 R10-25 PUSH BUTTON FOR WARNING LIGHTS Part 4l rectangular rapid flashing beacons
R10-27 R10-27 LEFT TURN YIELD ON FLASHING RED ARROW AFTER STOP Part 2b regulatory signs
R10-28 R10-28 PER GREEN Part 2b regulatory signs
R10-29 R10-29 PER GREEN EACH LANE Part 2b regulatory signs
R10-30 R10-30 RIGHT TURN ON RED MUST YIELD TO U-TURN Part 2b regulatory signs
R10-31P R10-31P AT SIGNAL Part 2b regulatory signs
R10-32P R10-32P BUTTON FOR 2 SECONDS FOR EXTRA CROSSING TIME Part 4i pedestrian control features
R11-1 R11-1 KEEP OFF MEDIAN Sign Part 2b regulatory signs
R11-2 R11-2 ROAD CLOSED Sign Part 2b regulatory signs
R11-2a R11-2a STREET CLOSED Part 6g ttc zone regulatory signs
R11-2b R11-2b BRIDGE OUT Part 6g ttc zone regulatory signs
R11-2c R11-2c PATH CLOSED Part 6g ttc zone regulatory signs
R11-3 R11-3 LOCAL TRAFFIC ONLY Part 2b regulatory signs
R11-3a R11-3a STREET CLOSED Part 6g ttc zone regulatory signs
R11-3b R11-3b BRIDGE OUT Part 6g ttc zone regulatory signs
R11-4 R11-4 ROAD CLOSED TO THRU TRAFFIC Part 2b regulatory signs
R12-2 R12-2 WEIGHT LIMIT XX TONS Part 2b regulatory signs
R12-4 R12-4 WEIGHT LIMIT XX TONS PER AXLE, XX TONS GROSS Part 2b regulatory signs
R12-5 R12-5 Weight Limit Part 2b regulatory signs
R12-6 R12-6 Weight Limit Part 2b regulatory signs
R12-7 R12-7 Emergency Vehicle Weight Limit Part 2b regulatory signs
R12-7aP R12-7aP Emergency Vehicle Weight Limit Part 2b regulatory signs
R13-1 R13-1 Weigh Station Sign Part 2b regulatory signs
R14-1 R14-1 TRUCK ROUTE Sign Part 2b regulatory signs
R14-2 R14-2 Hazardous Material Route Part 2b regulatory signs
R14-3 R14-3 Hazardous Material Part 2b regulatory signs
R14-4 R14-4 National Network Part 2b regulatory signs
R14-5 R14-5 National Network Prohibition Part 2b regulatory signs
R15-1 R15-1 Grade Crossing Part 2a signs general
R15-2P R15-2P Number of Tracks Plaque Part 8b signs
R15-3P R15-3P EXEMPT Part 8b signs
R15-5 R15-5 Do Not Pass Light Rail Transit Part 8b signs
R15-5a R15-5a DO NOT PASS STOPPED TRAIN Part 8b signs
R15-6 R15-6 No Motor Vehicles On Tracks Part 8b signs
R15-6a R15-6a DO NOT DRIVE ON TRACKS Part 8b signs
R15-8 R15-8 LOOK Sign Part 9b regulatory signs
R16-3 R16-3 Move Over or Reduce Speed Sign Part 2b regulatory signs
R16-4 R16-4 Move Vehicles from Travel Lanes Sign Part 2b regulatory signs
R16-5 R16-5 LIGHTS ON WHEN USING WIPERS Part 2b regulatory signs
R16-6 R16-6 LIGHTS ON WHEN RAINING Part 2b regulatory signs
R16-7 R16-7 TURN ON HEADLIGHTS NEXT XX MILES Part 2b regulatory signs
R16-8 R16-8 TURN ON HEADLIGHTS Part 2b regulatory signs
R16-9 R16-9 CHECK HEADLIGHTS Part 2b regulatory signs
R16-10 R16-10 BEGIN DAYTIME HEADLIGHT SECTION Part 2b regulatory signs
R16-11 R16-11 END DAYTIME HEADLIGHT SECTION Part 2b regulatory signs
R22-2 R22-2 TURN OFF 2-WAY RADIO AND CELL PHONE Sign Part 6g ttc zone regulatory signs

School (S)

Sign Code Sign / plaque Defined in
S1-1 S1-1 School Part 2a signs general
S3-1 S3-1 School Bus Stop Ahead Part 7b signs

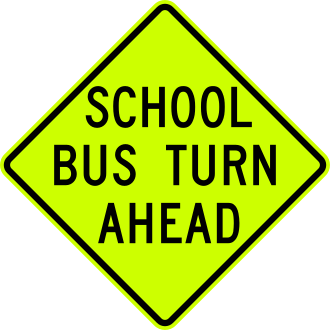

S3-2 S3-2 SCHOOL BUS TURN AHEAD Part 7b signs
S4-2P S4-2P WHEN CHILDREN ARE PRESENT Part 7b signs
S4-3P S4-3P SCHOOL Part 7b signs
S4-4P S4-4P WHEN FLASHING Part 7b signs
S4-7P S4-7P ALL YEAR Part 7b signs
S5-1 S5-1 School Speed Limit Part 7b signs
S5-2 S5-2 END SCHOOL ZONE Part 7b signs
S5-3 S5-3 END SCHOOL SPEED LIMIT Part 7b signs

Warning (W)

Sign Code Sign / plaque Defined in
W1-1 W1-1 Turn Part 2c warning signs
W1-2 W1-2 Curve Part 2c warning signs
W1-3 W1-3 Reverse Turn Part 2c warning signs
W1-4 W1-4 Reverse Curve Part 2c warning signs
W1-5 W1-5 Winding Road Part 2c warning signs
W1-6 W1-6 One-Direction Large Arrow Sign Part 2c warning signs
W1-7 W1-7 Two-Direction Large Arrow Sign Part 2c warning signs
W1-8 W1-8 Chevron Alignment Sign Part 2c warning signs
W1-10 W1-10 Combination Horizontal Alignment/Intersection Part 2c warning signs
W1-11 W1-11 Hairpin Curve Part 2c warning signs
W1-13 W1-13 Truck Rollover Sign Part 2c warning signs
W1-15 W1-15 Loop Part 2c warning signs
W2-1 W2-1 Cross Road Part 2c warning signs
W2-4 W2-4 T-Intersection Part 2c warning signs
W2-5 W2-5 Y-Intersection Part 2c warning signs
W2-6 W2-6 Circular Intersection Part 2c warning signs
W2-7 W2-7 Offset Side Roads Part 2c warning signs
W2-8 W2-8 Double Side Roads Part 2c warning signs
W2-10 W2-10 TRAFFIC ENTERING WHEN FLASHING Part 2c warning signs
W2-11 W2-11 TRAFFIC APPROACHING WHEN FLASHING Part 2c warning signs
W3-1 W3-1 Stop Ahead Part 2c warning signs
W3-2 W3-2 Yield Ahead Part 2c warning signs
W3-3 W3-3 Signal Ahead Part 2c warning signs
W3-4 W3-4 BE PREPARED TO STOP Part 2c warning signs
W3-5c W3-5c Truck Speed Zone Ahead Part 2c warning signs
W3-5b W3-5b VARIABLE SPEED ZONE AHEAD Part 2c warning signs
W3-6 W3-6 DRAW BRIDGE Sign Part 2c warning signs
W3-7 W3-7 RAMP METER AHEAD Part 2c warning signs
W3-8 W3-8 RAMP METERED WHEN FLASHING Part 2c warning signs
W3-9 W3-9 Traffic Using Shoulder Part 2g preferential managed lane signs
W4-1 W4-1 Merge Part 2c warning signs
W4-2 W4-2 Lane Ends Part 2c warning signs
W4-3 W4-3 Added Lane Part 2c warning signs
W4-4aP W4-4aP DOES NOT STOP Part 2c warning signs
W4-4bP W4-4bP ONCOMING TRAFFIC DOES NOT STOP Part 2c warning signs
W4-4P W4-4P CROSS TRAFFIC DOES NOT STOP Part 2c warning signs
W4-5aP W4-5aP NO MERGE AREA Part 2c warning signs
W4-5 W4-5 Entering Roadway Merge Part 2c warning signs
W4-6 W4-6 Entering Roadway Added Lane Part 2c warning signs
W4-8 W4-8 Single-Lane Transition Part 2c warning signs
W5-1 W5-1 ROAD NARROWS Sign Part 2c warning signs
W5-2 W5-2 NARROW BRIDGE Part 2c warning signs
W5-2a W5-2a NARROW UNDERPASS Part 2c warning signs
W5-3 W5-3 ONE LANE BRIDGE Part 2c warning signs
W5-3a W5-3a ONE LANE UNDERPASS Part 2c warning signs
W5-4 W5-4 RAMP NARROWS Sign Part 6h ttc zone warning signs
W5-4a W5-4a PATH NARROWS Part 9c warning signs and object markers
W6-1 W6-1 Divided Highway Sign Part 2c warning signs
W6-2 W6-2 Divided Highway Ends Sign Part 2c warning signs
W6-3 W6-3 Two-Way Traffic Sign Part 2c warning signs
W6-4 W6-4 Narrow Two-Way Traffic Sign Part 6h ttc zone warning signs
W7-1 W7-1 Hill Part 2c warning signs

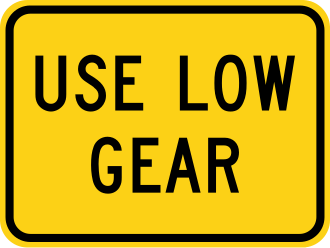

W7-2P W7-2P USE LOW GEAR Part 2c warning signs
W7-2bP W7-2bP TRUCKS USE LOWER GEAR Part 2c warning signs
W7-3aP W7-3aP Supplementary Distance Plaque Part 6h ttc zone warning signs
W7-3P W7-3P Hill sign and supplemental grade Part 2c warning signs
W7-4dP W7-4dP SAND Part 2c warning signs
W7-4eP W7-4eP GRAVEL Part 2c warning signs
W7-4fP W7-4fP PAVED Part 2c warning signs
W7-5 W7-5 Hill Part 9c warning signs and object markers
W7-6 W7-6 HILL BLOCKS VIEW Sign Part 2c warning signs
W8-1 W8-1 BUMP Part 2c warning signs
W8-2 W8-2 DIP Part 2c warning signs
W8-3 W8-3 PAVEMENT ENDS Sign Part 2c warning signs
W8-4 W8-4 SOFT SHOULDER Part 2c warning signs
W8-5 W8-5 Slippery When Wet Part 2c warning signs
W8-6 W8-6 TRUCK CROSSING Part 2c warning signs
W8-7 W8-7 LOOSE GRAVEL Part 2c warning signs
W8-8 W8-8 ROUGH ROAD Part 2c warning signs
W8-9 W8-9 LOW SHOULDER Part 2c warning signs
W8-10 W8-10 Bicycle Surface Condition Warning Sign Part 9c warning signs and object markers
W8-11 W8-11 UNEVEN LANES Sign Part 6h ttc zone warning signs
W8-12 W8-12 NO CENTER LINE Sign Part 2c warning signs
W8-13 W8-13 BRIDGE ICES BEFORE ROAD Part 2c warning signs
W8-14 W8-14 FALLEN ROCKS Part 2c warning signs

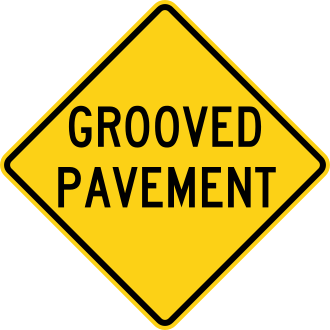

W8-15 W8-15 GROOVED PAVEMENT Part 2c warning signs
W8-15aP W8-15aP Motorcycle Plaque Part 6h ttc zone warning signs
W8-16 W8-16 METAL BRIDGE DECK Part 2c warning signs
W8-17 W8-17 Shoulder Drop Off Part 2c warning signs
W8-17P W8-17P SHOULDER DROP-OFF Part 2c warning signs
W8-18 W8-18 ROAD MAY FLOOD Part 2c warning signs
W8-19 W8-19 Depth Gauge Part 2c warning signs
W8-21 W8-21 GUSTY WINDS AREA Part 2c warning signs
W8-22 W8-22 FOG AREA Part 2c warning signs
W8-23 W8-23 NO SHOULDER Part 2c warning signs
W8-24 W8-24 STEEL PLATE AHEAD Sign Part 6h ttc zone warning signs
W8-25 W8-25 SHOULDER ENDS Part 2c warning signs
W8-26 W8-26 ROAD ENDS XX FT Part 2c warning signs
W8-26a W8-26a STREET ENDS XX FT Part 2c warning signs
W9-1 W9-1 LEFT LANE ENDS Part 2a signs general
W9-2a W9-2a MERGE HERE TAKE TURNS Part 6h ttc zone warning signs
W9-3 W9-3 Interior Lane Shift Part 6h ttc zone warning signs
W9-4 W9-4 LANES MERGE Part 2c warning signs
W9-5 W9-5 Bicycle Lane Ends Warning Sign Part 9c warning signs and object markers
W9-5a W9-5a Bicycles Merging Sign Part 9c warning signs and object markers
W9-6 W9-6 Pay Toll Part 2f toll road signs
W9-6e W9-6e Take Ticket Part 2f toll road signs
W9-6dP W9-6dP Pay Toll Part 2f toll road signs
W9-6a W9-6a Stop Ahead Pay Toll Part 2f toll road signs
W9-6f W9-6f Stop Ahead Take Ticket Part 2f toll road signs
W9-6cP W9-6cP Stop Ahead Pay Toll Part 2f toll road signs
W9-6hP W9-6hP Stop Ahead Take Ticket Part 2f toll road signs
W9-7 W9-7 LANE FOR EXIT ONLY Sign Part 2c warning signs
W10-1 W10-1 Grade Crossing Advance Warning Part 2a signs general
W10-1aP W10-1aP EXEMPT Part 8b signs
W10-5 W10-5 Low Ground Clearance Grade Crossing Sign Part 8b signs
W10-5P W10-5P LOW GROUND CLEARANCE Part 8b signs
W10-7 W10-7 Approaching-Activated Blank-Out Warning Sign Part 8b signs
W10-8 W10-8 TRAINS MAY EXCEED 80 MPH Sign Part 8b signs
W10-9 W10-9 NO TRAIN HORN Part 8b signs
W10-9P W10-9P NO TRAIN HORN Part 8b signs
W10-11 W10-11 Storage Space Part 8b signs
W10-11a W10-11a Storage Space Ahead Part 8b signs
W10-11b W10-11b Storage Space Behind Part 8b signs
W10-12 W10-12 Skewed Crossing Sign Part 8b signs
W10-13P W10-13P NO GATES OR LIGHTS Plaque Part 8b signs
W10-14P W10-14P NEXT CROSSING Part 8b signs

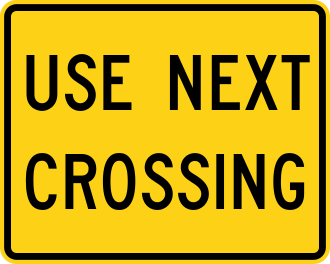

W10-14aP W10-14aP USE NEXT CROSSING Part 8b signs
W10-15P W10-15P ROUGH CROSSING Plaque Part 8b signs
W10-16 W10-16 Another Train Coming Sign Part 8b signs
W11-1 W11-1 Bicycle Warning Part 9c warning signs and object markers
W11-2 W11-2 Pedestrian Crossing Part 2c warning signs
W11-8 W11-8 Emergency Vehicle Part 2c warning signs
W11-10 W11-10 Truck Part 2c warning signs

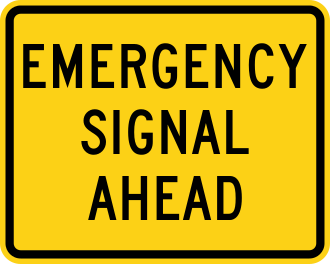

W11-12P W11-12P EMERGENCY SIGNAL AHEAD Part 2c warning signs
W11-15 W11-15 Trail Crossing Part 2c warning signs
W11-15P W11-15P TRAIL X-ING Part 2c warning signs
W11-15a W11-15a TRAIL CROSSING Part 2c warning signs
W12-1 W12-1 Double Arrow Sign Part 2c warning signs
W12-2 W12-2 Low Clearance Signs Part 2c warning signs
W12-2b W12-2b Low Clearance Overhead Part 2c warning signs

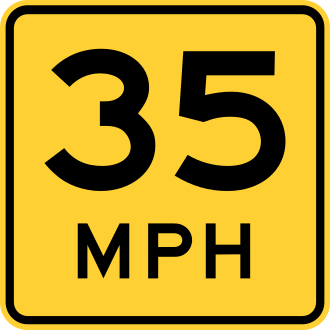

W13-1P W13-1P Advisory Speed Plaque Part 2c warning signs
W13-1aP W13-1aP Confirmation Advisory Speed Plaque Part 2c warning signs
W13-2 W13-2 Exit Speed Part 2c warning signs

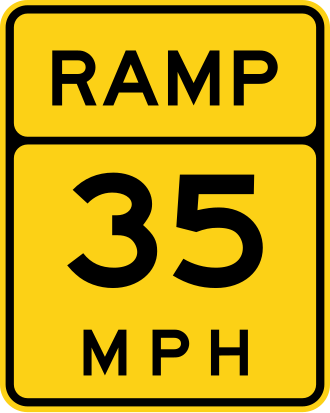

W13-3 W13-3 Ramp Speed Part 2c warning signs
W13-4P W13-4P ON RAMP Plaque Part 6h ttc zone warning signs
W13-20 W13-20 Vehicle Speed Feedback Part 2c warning signs
W13-20aP W13-20aP Vehicle Speed Feedback Part 2c warning signs
W14-1 W14-1 DEAD END Part 2c warning signs
W14-1a W14-1a DEAD END Part 2c warning signs

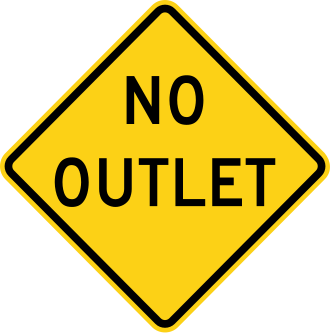

W14-2 W14-2 NO OUTLET Part 2c warning signs
W14-2a W14-2a NO OUTLET Part 2c warning signs
W14-3 W14-3 NO PASSING ZONE Sign Part 2c warning signs
W15-1 W15-1 Playground Sign Part 2c warning signs
W16-1P W16-1P IN ROAD Part 2c warning signs
W16-1aP W16-1aP IN STREET Part 2c warning signs
W16-4P W16-4P NEXT XX FEET Part 6n types of temporary traffic control zone activities
W16-9P W16-9P AHEAD Part 2c warning signs
W16-10P W16-10P Photo Enforced Part 2c warning signs
W16-10aP W16-10aP PHOTO ENFORCED Part 2c warning signs
W16-11P W16-11P HOV Part 2g preferential managed lane signs
W16-12P W16-12P TRAFFIC CIRCLE Part 2c warning signs
W16-12aP W16-12aP ROUNDABOUT Part 2c warning signs
W16-13P W16-13P WHEN FLASHING Part 2c warning signs
W16-15P W16-15P NEW Plaque Part 2c warning signs
W16-16P W16-16P LAST EXIT BEFORE TOLL Part 2f toll road signs
W16-17P W16-17P TOLL Warning Plaque Part 2f toll road signs
W16-19P W16-19P LAST IN CORRIDOR Part 2h 2n signs misc
W16-20P W16-20P EXCEPT BICYCLES Plaque Part 2c warning signs
W16-21P W16-21P Two-Way Bicycle Cross Traffic Warning Plaque Part 9c warning signs and object markers
W17-1 W17-1 SPEED HUMP Sign Part 2c warning signs
W18-1 W18-1 NO TRAFFIC SIGNS Sign Part 2c warning signs
W19-1 W19-1 FREEWAY ENDS XX MILES Part 2c warning signs
W19-2 W19-2 EXPRESSWAY ENDS XX MILES Part 2c warning signs
W19-3 W19-3 FREEWAY ENDS Part 2c warning signs
W19-4 W19-4 EXPRESSWAY ENDS Part 2c warning signs
W19-5 W19-5 ALL TRAFFIC MUST EXIT Part 2c warning signs
W20-1 W20-1 WORK Sign Part 6h ttc zone warning signs
W20-2 W20-2 DETOUR Sign Part 6h ttc zone warning signs
W20-3 W20-3 CLOSED Sign Part 6h ttc zone warning signs
W20-4 W20-4 ONE LANE ROAD Sign Part 6h ttc zone warning signs
W20-5 W20-5 Lane Closed Part 6h ttc zone warning signs
W20-7 W20-7 Flagger Part 6h ttc zone warning signs
W20-7a W20-7a FLAGGER Part 6h ttc zone warning signs
W20-8 W20-8 SLOW Part 6l other ttc zone traffic control devices
W21-1 W21-1 Workers Part 6h ttc zone warning signs
W21-1a W21-1a WORKERS Part 6h ttc zone warning signs
W21-3 W21-3 ROAD MACHINERY AHEAD Sign Part 6h ttc zone warning signs
W21-4 W21-4 SLOW MOVING VEHICLE Part 6n types of temporary traffic control zone activities
W21-5 W21-5 SHOULDER WORK Part 6h ttc zone warning signs
W21-5a W21-5a SHOULDER CLOSED Part 6h ttc zone warning signs
W21-5b W21-5b SHOULDER CLOSED XX FT or AHEAD Part 6h ttc zone warning signs
W21-6 W21-6 SURVEY CREW Sign Part 6h ttc zone warning signs
W21-7 W21-7 UTILITY WORK Sign Part 6h ttc zone warning signs
W21-8 W21-8 MOWING AHEAD Part 6n types of temporary traffic control zone activities
W22-1 W22-1 BLASTING ZONE AHEAD Part 6h ttc zone warning signs
W22-3 W22-3 END BLASTING ZONE Part 6h ttc zone warning signs
W23-1 W23-1 SLOW TRAFFIC AHEAD Sign Part 6h ttc zone warning signs
W23-2 W23-2 NEW TRAFFIC PATTERN AHEAD Sign Part 6h ttc zone warning signs
W23-2a W23-2a NEW SIGNAL OPERATION AHEAD Part 2c warning signs
W24-1cP W24-1cP ALL LANES Part 6h ttc zone warning signs
W26-1 W26-1 WATCH FOR STOPPED TRAFFIC Sign Part 2c warning signs

610 sign codes indexed. Names are the official MUTCD sign designations; this unofficial mirror links each to its defining section.
